Practice Project for Systems Engineering - Part 2

Part 1 was all whiteboards and sticky notes: we argued over requirements, carved a latency budget, and froze a mission that could be proven on a kitchen table. That was the left-hand descent of the V-model.

Part 2 begins the climb up the right-hand side. Here the abstractions acquire voltages, GPIO pins and FreeRTOS tasks. We will:

1. Pin every SMART requirement to a functional block.
   You'll see a tight sense → estimate → decide → act pipeline that closes in 10 ms—fast enough to intervene five times before the car has rolled a single wheel-diameter.

2. Choose silicon and copper that can't mis-brake.
   A $20 QuicRun ESC supplies dynamic-braking torque, an ELRS receiver delivers low-loss throttle frames, and a$1 74HC157 mux makes sure the radio always has veto power if firmware dies.

3. Split software into four clean layers.
   The Application layer ships features; the Domain layer does the math; the Service layer adapts ports; HAL drivers and RTOS tasks sit at rock bottom. Every layer is unit-testable on a PC.

4. Give the driver two eyes, not one.
   A WildFire Nano AIO camera/VTx provides a 13-17 ms analogue feed for racing, while the ESP32 still pushes MJPEG over Wi-Fi for bench work. The two links share nothing but a battery, so congestion on one can't sink the other.

By the end of this part you'll have the full bill-of-materials, a layered codebase skeleton, and concrete verification hooks—all ready for the soldering iron. If Part 1 was the blueprint, Part 2 is the build manual. Let's zoom in.

DISCLAIMER: I haven't done extensive testing for the hardware pieces included in the project. Since this is an exercise, I "trusted" GPT o3 with the estimates for the latencies and such. If I were planning to carry on with this project, a whole verification and validation process would need to be done for those parts.

---

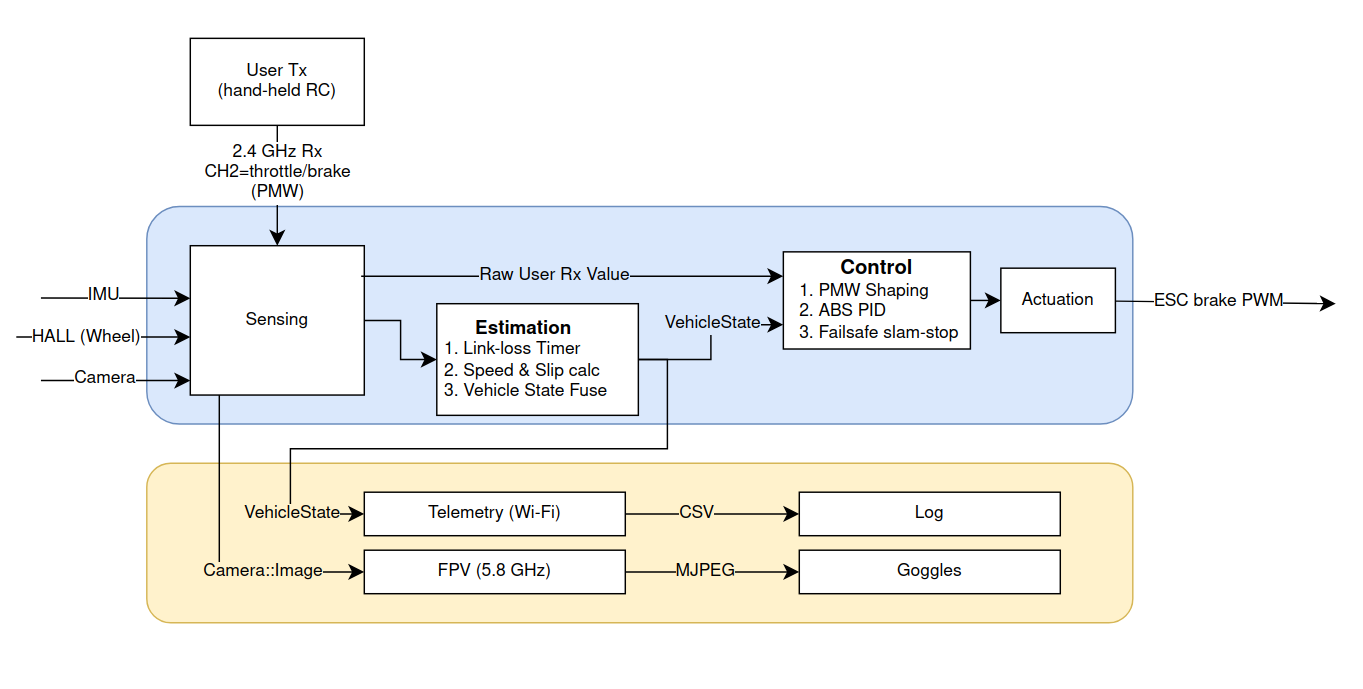

1 Functional Architecture - What the System Does

In classical control parlance this is a sense → estimate → decide → act pipeline. The feedback loop closes every 10 ms, giving the controller five fresh opportunities to intervene during the 25 ms it takes the car to travel 20 cm at 30 km h⁻¹.

Block	Prime SMART reqs
Sensing	FR-4
Estimation	FR-1a, FR-2
Control	FR-1b, FR-2
Telemetry	FR-3, FR-4

Anything that cannot be traced forward to a requirement,or backward to a verification step,gets chopped as scope-creep.

---

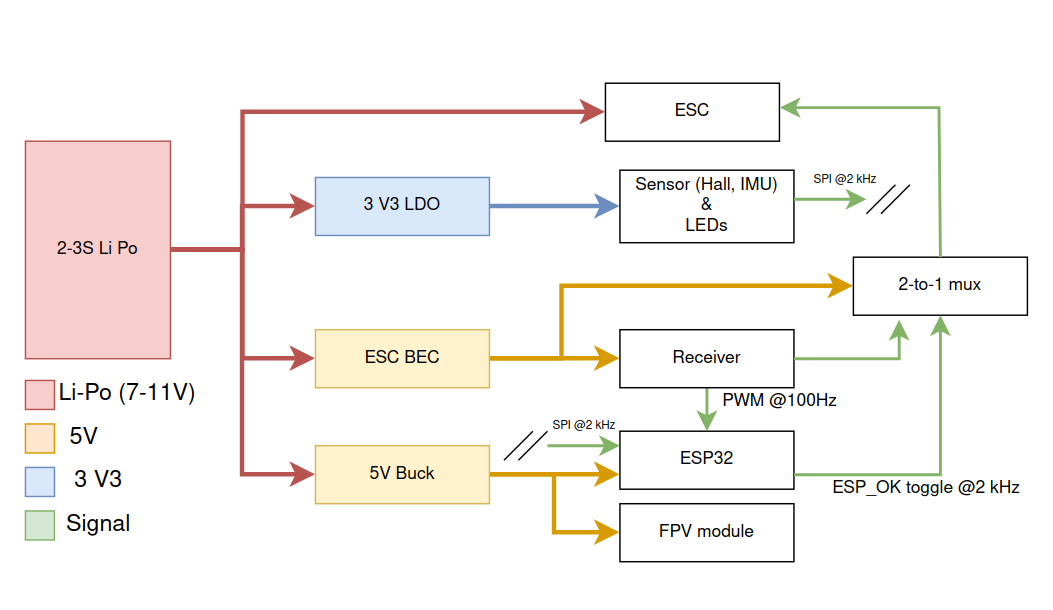

2 Physical Architecture - What the System Is

As with other parts of the series, selecting certain parts, such as the MCU, ESC, Servos, etc., must be carefully considered. Here, I'm "trusting" the LLM (GPT o3) to select for me, but if I were to build the system, I would refine this part in detail.

Sub-assembly	Main parts & interfaces	Power domain
Chassis & drive	WLtoys 144001 buggy, HobbyWing QuicRun 16BL30 ESC, stock steering servo	Li-Po raw
Radio link	ELRS receiver (S.Bus 100 Hz)	5 V BEC
Compute module	ESP32-S3-CAM dev-kit, on-board Wi-Fi/BLE, 8 MB PSRAM	5 V buck
Safety-mux	74HC157 quad 2-to-1 PWM mux + RC watchdog gate (GPIO feed from ESP32)	5 V buck
Sensing frontend	• Hall sensor (rear-left wheel) • BMI270 IMU (SPI)	3 V3 LDO
Vision frontend	OV2640 camera on ESP32	3 V3
FPV link	Foxeer WildFire Nano VTx 25/200 mW + 600 TVL AIO cam (NTSC)	5 V buck
Power chain	MP1584 buck (11 V→5 V) → AMS1117 (5 V→3 V3)	-
User I/O	RGB status LED, push-button mode select	3 V3
Test/Debug	SWO/UART header, 8-ch logic-analyser pin-out	3 V3

Design intent

• Fail-silent hardware path. Radio PWM always has a physical lane to the ESC. The ESP32 takes over only while a watchdog-toggled GPIO keeps the mux selected; loss of toggling (<30 ms) reverts to radio.
• All life-critical loads share the main Li-Po rail—if SmartDrive-XR dies, the driver regains stock control immediately.
• WildFire Nano gives a sub-10 ms FPV feed for racing; Wi-Fi MJPEG stays for bench work.

---

3 Software Architecture - Where Behaviour Lives in Time

3.1 Layered View

┌────────────────────────────────────────────────────────────┐
│   Application layer ("features")                           │
│    • ABSController • FailsafeManager • LatencyProfiler     │
│    • FpvOsdManager                                         │
│────────────────────────────────────────────────────────────│
│   Domain layer ("business logic")                          │
│    • VehicleState • PwmShapeStrategy • ControlLaw (PID)    │
│    • StateEstimation                                       │
│────────────────────────────────────────────────────────────│
│   Service layer ("ports & adapters")                       │
│    • StateProvider • SpeedCommander • CsvLogger            |
|    • MjpegStreamer • FpvMonitor (RSSI) • **PwmMuxDriver**  │
│────────────────────────────────────────────────────────────│
│   HAL + RTOS (drivers & tasks)                             │
│    • imu_bmi270.c • hall_driver.c • esc_pwm_driver.c       │
│    • fpv_rssi_adc.c • pwm_mux_driver.c                     │
│    • cam_dma.c • wifi_sta.c • rtos_task_mgr.c              │
└────────────────────────────────────────────────────────────┘
Copy

Why this split?

• Application layer answers "What feature do I ship?"
• Domain layer answers "What maths / logic makes it correct?"
• Service layer answers "How do I talk to IO, network, storage?", using Port-and-Adapter (Hexagonal) pattern.
• HAL + RTOS hides silicon specifics, keeping everything above unit-testable on the host.

3.2 Core Design Patterns

Pattern	Anchor module	Why it matters
Hexagonal	StateProvider, SpeedCommander, FpvMonitor	Swap real drivers for mocks in CI
Strategy	PwmShapeStrategy	Tune brake feel live over CLI
Command	BrakeCommand → driver queue	Decouples 10 ms maths from µs PWM
State Machine	FailsafeManager	Formal RUN → DECEL → STOP → IDLE
Observer	event_bus.h	Zero-copy pub-sub between tasks
DI (manual)	app_init()	Tests inject mocks; prod wires HW

3.3 RTOS Task Model (ESP-IDF v5 / FreeRTOS SMP)

Task (core)	Period	Stack	Prio	Role
sensor_task (1)	10 ms	4 kB	15	IMU + Hall → STATE_RAW
estimator_task	10 ms	6 kB	18	Madgwick + Kalman + link-loss timer → VehicleState
control_task	10 ms	4 kB	20	ABS PID (+ FailsafeManager) → BrakeCommand
mux_feed_task (1)	2 ms	1 kB	22	Toggle GPIO watchdog for 74HC157
actuator_task	10 ms	3 kB	21	ESC PWM, safety heartbeat check
cam_task (0)	33 ms	8 kB	10	DMA frame → PSRAM
stream_task (0)	asap	8 kB	12	MJPEG over TCP
fpv_monitor (0)	100 ms	2 kB	11	Sample VTx RSSI → EVENT_FPV_LOST
osd_task (0)	33 ms	3 kB	10	Push speed/slip overlay to MAX7456
cli_task (0)	event	4 kB	8	UART shell & unit hooks

Bench note: Added FPV tasks raise CPU utilisation to ≈ 51 %/core, still well within head-room.

3.4 File-Tree & Build Targets

firmware/
├── app/
│   ├── abs_controller.c
│   ├── failsafe_manager.c
│   ├── latency_profiler.c
│   └── fpv_osd_manager.c
├── domain/
│   ├── vehicle_state.c
│   ├── state_estimation.c
│   ├── control_law_pid.c
│   ├── pwm_shape_strategy.c
│   └── event_bus.c
├── services/
│   ├── state_provider/
│   ├── speed_commander/
│   ├── csv_logger.c
│   ├── mjpeg_streamer.c
│   └── osd_bridge/
│       ├── fpv_monitor.c
│       └── osd_bridge.c
├── drivers/
│   ├── imu_bmi270.c
│   ├── hall_driver.c
│   ├── esc_pwm_driver.c
│   ├── fpv_rssi_adc.c
│   └── pwm_mux_driver.c/.h        # GPIO toggle & self-test
├── platform/
│   ├── board_init.c
│   └── task_manager.c
├── test/                    # Unity + host_sim
└── tools/                   # log parser, CI
Copy

Build targets:

• idf.py build – full firmware
• idf.py build -DUNIT_TESTS=ON – on-target Unity harness
• make host_sim – desktop binary with SDL graphing, for CI
• idf.py size-components – memory budgeting gate

3.5 Configuration & Parameter Store

fpv:
  mode:      "analog"   # analog | wifi | off
  vtx_power: 25         # mW  (toggle 25/200 via push-button)
  osd:       true

abs:
  kp: 1.4
  ki: 0.3
  kd: 0.02
Copy

Compile-time pins via menuconfig; run-time tweaks via CLI (set fpv.mode wifi etc.) and persisted with Command + Memento.

3.6 Verification Hooks (Right Arm of the V)

Artifact	Checks in CI / bench
Replay harness	Deterministic stop distance
Golden CSV	Brake 30 km h⁻¹ → 0 ≤ 1.0 m
Latency GPIO pair	Camera-to-Wi-Fi ≤ 120 ms
FPV latency scope	IR-LED flash → goggles; 90 % < 15 ms
Static analysis	clang-tidy, radon < 10 CC
Mux watchdog scope	ill mux_feed_task; radio PWM path must be restored in < 30 ms.

---

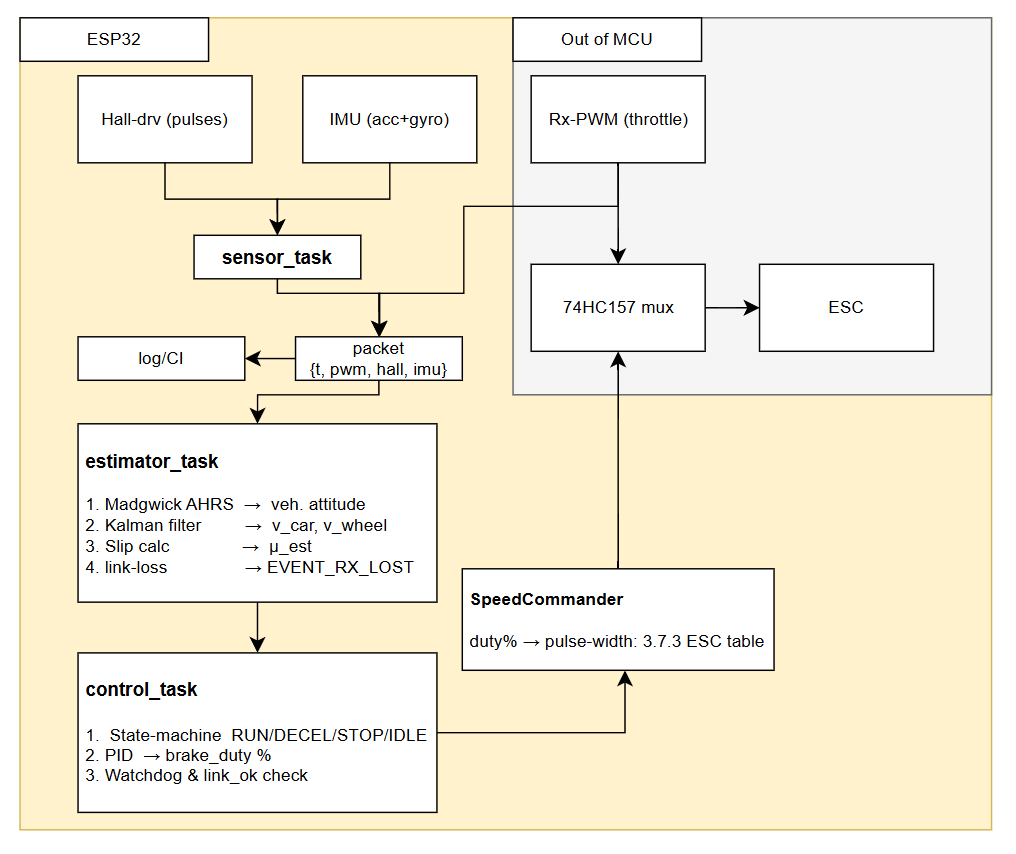

3.7 ABS Subsystem — from Raw Sensors to Brake Torque

Everything below can be dropped in as one self-contained section; it replaces the terse "Quick Tour" with a fully annotated, reader-friendly module description.

---

3.7.1 Data flow at a glance

---

3.7.2 Two nested control loops

Loop	Period	Plant	Goal	Controller	Comment
Inner	10 ms	rear wheel dynamics	μ (slip) → 0.15	PID
Outer	event-driven	vehicle state	safe states	4-state machine	Guards against wind-up, link loss, zero-speed stall.

State transitions:

RUN ─► DECEL  (link lost OR driver pulls trigger)
DECEL ─► STOP (v_car < 0.3 m s⁻¹)
STOP ─► IDLE (brake_duty == 0 for 500 ms)
IDLE ─► RUN  (driver reapplies throttle)
Copy

---

3.7.3 ESC as an electronic brake

No caliper, no servo; the ESC does it all.

Pulse	Meaning (QuicRun "F/B" mode)
1.70 ms	100 % forward throttle
1.50 ms	Neutral / coast
1.30 ms	100 % dynamic brake
< 1.30 ms	Reverse (disabled by clamping)

Firmware constants:

#define ESC_NEUTRAL_US 1500
#define ESC_BRAKE_MAX_US 1300   // never go lower
Copy

SpeedCommander linearly interpolates between those limits; the pwm_mux_driver toggles its GPIO at 2 kHz. If the MCU crashes, the RC filter on the mux select pin discharges in ≈ 25 ms and hardware flips back to the radio lane—meeting FR-1b even with dead firmware.

---

3.7.4 Calibration checklist

1. Set QuicRun to Forward/Brake (hold button 3 s, 1 LED flash).
2. Radio end-point calibration: full-throttle → full-brake → neutral.
3. Record neutral pulse with logic analyser → update ESC_NEUTRAL_US.
4. Road test: log μ_est, adjust PID.kp until damped (ζ ≈ 0.7).

---

3.7.5 Verification hooks

Hook	What it proves
Logic-analyser on mux output	Pulse drops to 1.30 ms ≤ 100 ms after Rx loss (FR-1b).
High-speed video + tape	30 km h⁻¹ → 0 in ≤ 1.2 m (FR-2).
Replay harness	Deterministic stop distance on log playback.

This richer ABS section now ties sensors, maths, hardware PWM and safety-mux into one coherent narrative—readers can replicate or audit every step.

3.8 The FPV Link: Seeing Through the Car's Eyes (and why it beats Wi-Fi in a race)

The WildFire Nano AIO module bundles sensor, NTSC encoder and 5.8 GHz VTx on one 4 g board. That saves you an extra ribbon cable and, more importantly, slices the latency pie:

Segment	Typical Wi-Fi (ESP32 MJPEG)	WildFire analogue
Sensor → encode	20 ms (JPEG)	3 ms (direct CVBS)
PHY / air link	50–80 ms (2.4 GHz)	4–6 ms (5.8 GHz)
Decode → LCD	15 ms (browser GPU)	6–8 ms (goggle LCD)
Total	75-120 ms	13-17 ms

Because the module is camera-internal, the ESP32 does nothing for the race-day video stream: zero CPU, zero DMA, zero risk. The ESP still provides a Wi-Fi MJPEG tap for pit-lane tuning; you simply choose which feed to watch.

Safety tie-in: fpv_monitor reads the WildFire RSSI pin through fpv_rssi_adc.c. If signal fades below -90 dBm for half a second the task raises EVENT_FPV_LOST, which the OSD blanks and the controller logs. The event can even trigger a gentle "pull over" profile if you like,just add a handler in FailsafeManager. Worst-case current draw at 200 mW is < 300 mA; a 470 µF low-ESR cap right at the VTx pins stops brown-outs when the power amplifier keys up.

So you get laboratory-friendly Wi-Fi plus race-worthy analogue,each with its own latency-budget test hook,without burdening the microcontroller or poking extra holes in the ABS loop.

---

4 End-to-End Traceability - Kitchen-Table Proof

Req	Functional blk	Physical element(s)	Software module(s)	Verification hook
FR-1a	Estimation	ELRS Rx PWM line + timer counter	estimator_task (LinkLossTimer)	Logic-analyser: > 120 ms gap raises EVENT_RX_LOST
FR-1b	Control	74HC157 mux (sel GPIO) + QuicRun ESC	control_task, mux_feed_task	Scope: pulse hits 1.30 ms ≤ 100 ms after FR-1a
FR-2	Control / Sense	Hall sensor + BMI270 IMU	estimator_task, PID	Hi-speed video + pandas stop-distance script
FR-3	Telemetry	OV2640 cam + ESP32 Wi-Fi	cam_task, stream_task	LED-flash latency rig
FR-4	Telemetry	SD-card logger	csv_logger	pandas integrity check
FR-5	Telemetry	WildFire Nano VTx	fpv_monitor, osd_task	IR-scope: analogue latency
CO-1	BOM	All parts	tools/bom.xlsx	CI budget line

5 Risks & Mitigations Snapshot

Risk	Like.	Impact	Mitigation
Mux select line stuck HIGH (firmware bug)	Low	High	Power-on reset pulse; self-test toggles at 2 kHz
Wi-Fi congestion inflates MJPEG latency	Med	High	Auto channel scan + analogue fallback
Buck-converter noise corrupts IMU Z-gyro	Low	Med	Π-filter on 3 V3 rail + IMU ground-flood
Hall encoder misses pulses > 30 km h⁻¹	Med	Med	Oversample + de-bounce; add second magnet if track demands
VTx over-temp in enclosed shell	Med	Med	Therm-pad to chassis; auto power-back-off at 65 °C

---
